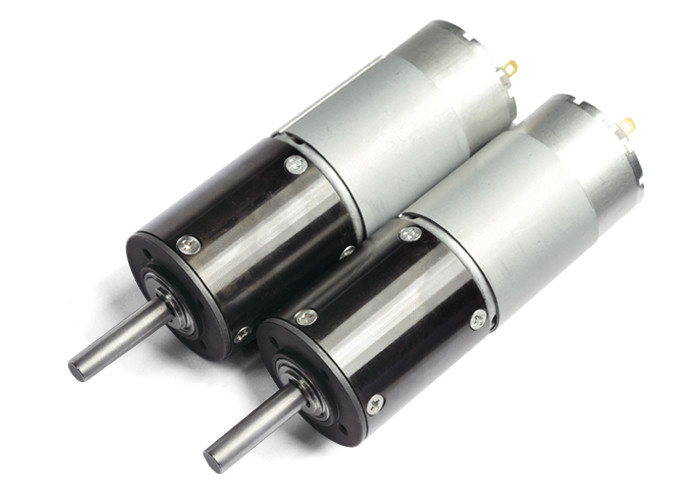

Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Китай Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed поставщик
Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed поставщик Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed поставщик

Большие изображения :  Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Подробная информация о продукте:

Место происхождения: Китай
Фирменное наименование: Zhaowei
Сертификация: ROHS/ISO9001/ISO14001/SGS/TS16949
Номер модели: ZWMD038038-977

Оплата и доставка Условия:

Количество мин заказа: 500PCS
Цена: negotiation
Упаковывая детали: упакованный в нейлоне во первых, после этого carton, и после этого усиленный с упаковкой деревянного
Время доставки: через 15 рабочих дней после компенсации
Условия оплаты: T / T, Western Union
Поставка способности: 5 000 ПК в день
Contact Now
Подробное описание продукта
Тип: Коробка передач мотора DC Напряжение: 12В или подгонянный
Материал: Металла Диаметр: 38mm
Коэффициент шестерни: 977:1 Вращающий момент номинальной нагрузки: 80.000 gf.cm
Скорость номинальной нагрузки: 5rpm Течение номинальной нагрузки: 1684мА
Скорость нулевой нагрузки: 5rpm Течение нулевой нагрузки: 335 mA

Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Specifications:


Model
Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWMD038038-39 12.0 142 325 133 1679 8434 827.1 100.7 80000 240000 39 43.7
ZWMD038038-64 12.0 87 335 81 1679 12041 1180.8 113.7 80000 240000 64 56.7
ZWMD038038-100 12.0 55 335 52 1679 18813 1845.0 80000 240000 100
ZWMD038038-156 12.0 36 335 33 1679 29349 2878.3 80000 240000 156
ZWMD038038-244 12.0 23 335 21 1679 45905 4501.9 80000 240000 244
ZWMD038038-256 12.0 21 335 20 1684 41901 4109.3 126.7 80000 240000 256 69.7
ZWMD038038-400 12.0 13 335 13 1684 65471 6420.7 80000 240000 400
ZWMD038038-625 12.0 8 335 8 1684 80000 7845.6 80000 240000 625
ZWMD038038-977 12.0 5 335 5 1684 80000 7845.6 80000 240000 977
ZWMD038038-1526 12.0 3 335 3 1684 80000 7845.6 80000 240000 1526
above specifications just for reference and customizable according to requirements



2D Drawing



Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed



Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
